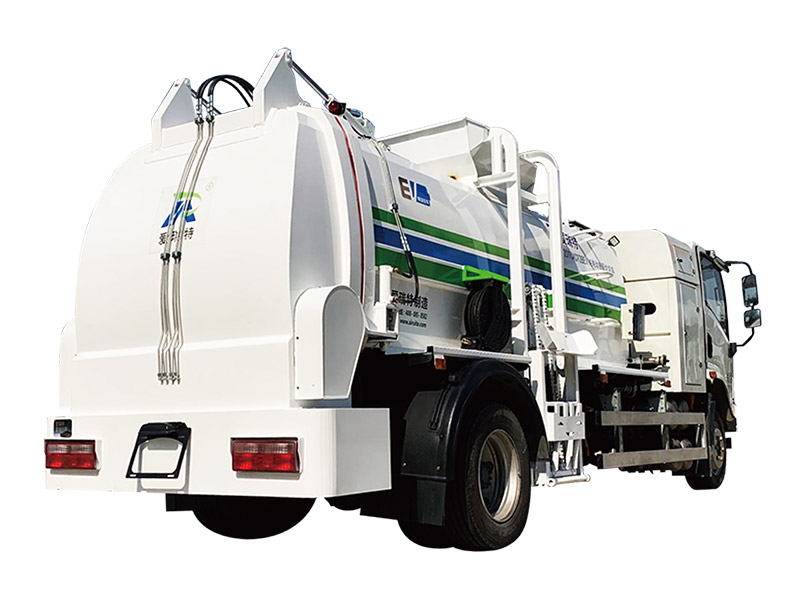

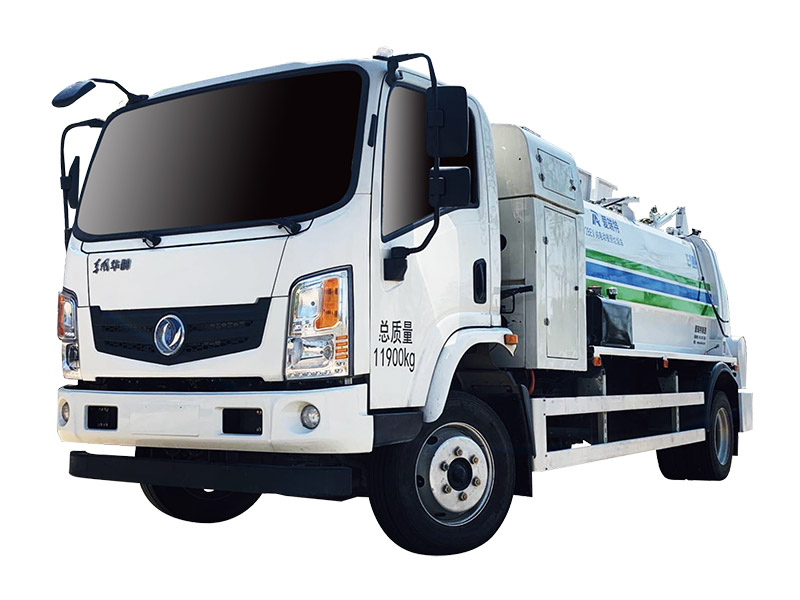

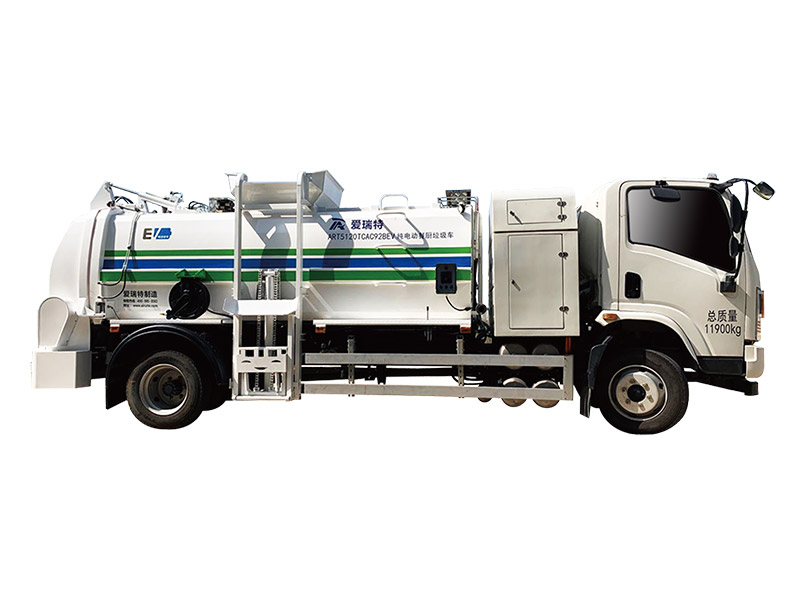

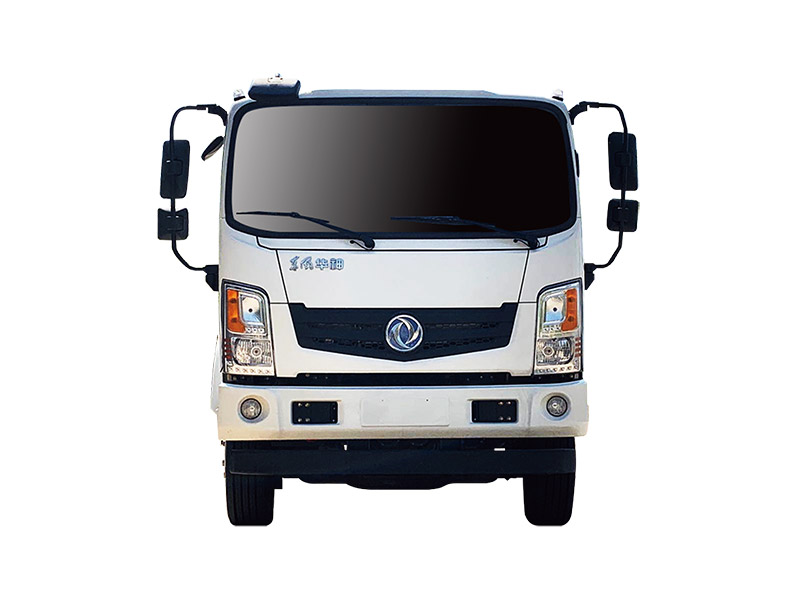

Ruibao C92 / 98 pure electric kitchen garbage truck

< >

Field of application

ART5120TCAC92/98BEV Pure electric kitchen garbage truck is mainly used for the collection and transportation of kitchen and kitchen waste in catering industry, unit canteen, living area and other places. Pure electric operation has low cost and zero emission.

Product highlights

◆ Stainless steel box: the box is made of 304 stainless steel, the feeding port is sealed by the sealing cover, and the hydraulic system controls the opening and closing;

◆ Receiving system: side chain type bucket lifting and tipping mechanism for feeding;

◆ Compression system: push and squeeze after pushing plate;

◆ Discharge system: the solid-liquid separation device is built in the box, which can push the plate to extrude and screw to discharge at fixed points;

◆ Hydraulic system: the rated pressure of the hydraulic system is 16MPa, the discharge door is pulled up by two rods, equipped with two-way balance valve, and the key components of electrical and hydraulic systems are of famous brands;

◆ Cleaning system: equipped with hydraulic cleaning device, it can clean the whole vehicle.

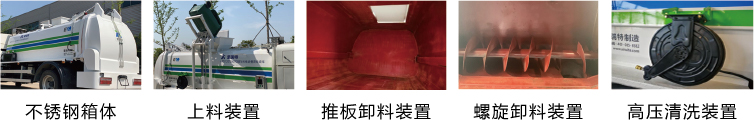

Product function

組 1.jpg

technical parameter
ParametersART5120TCAC92BEV Pure electric kitchen garbage truckART5120TCAC98BEV Pure electric kitchen garbage truck
Chassis model / brandEQ1120TTEVJ/east windSH1127KEVCWZ/Leap forward
Total mass11900kg12495kg
curb weight7650kg7800kg
wheelbase4700mm4720mm
Battery brandNingde times (LiFePO4)Ningde times (LiFePO4)
Battery capacity218.55kWh218.55kWh
Maximum speed90km/h90km/h
Maximum climbing gradient30%30%
Minimum turning radius7.65m9.5m
Volume of garbage can6m36m3
Volume of sewage tank0.6m30.6m3
Volume of clean water tank0.2m30.2m3
Feeding cycle time≤22s≤22s
Cycle time of discharging operation≤240s(Seal discharge),≤45s(Push discharge)≤240s(Seal discharge),≤45s(Push discharge)
Overall dimension (L × w × h)7520×2240×2780mm7500×2340×2840mm
