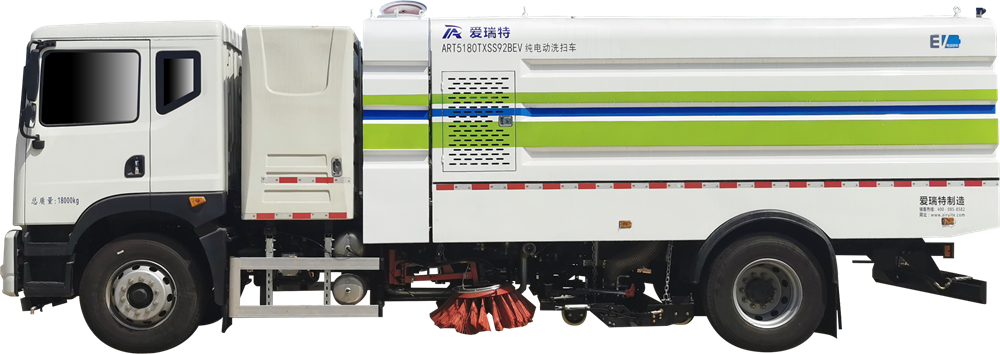

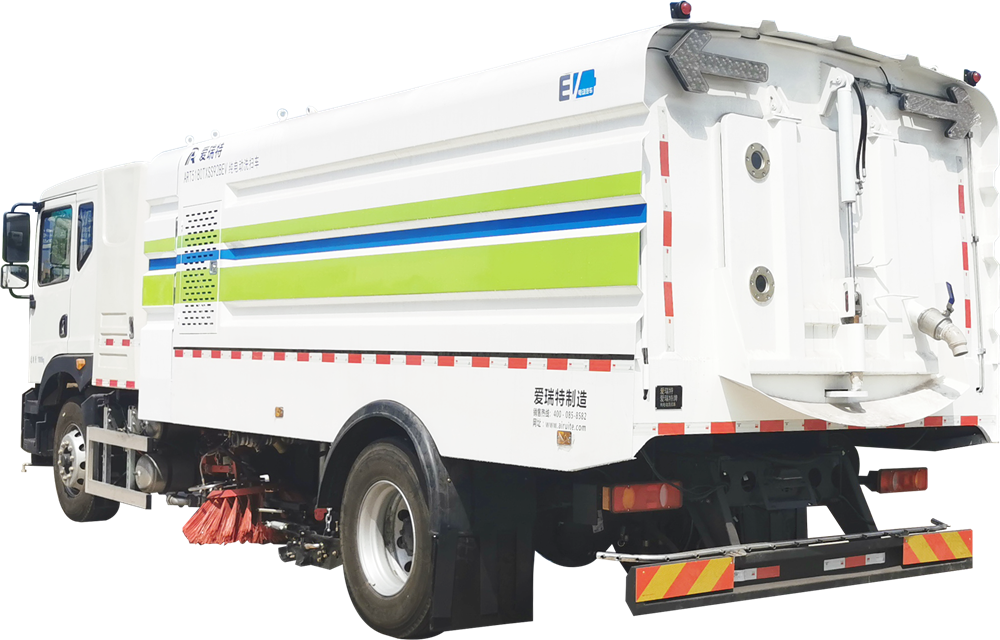

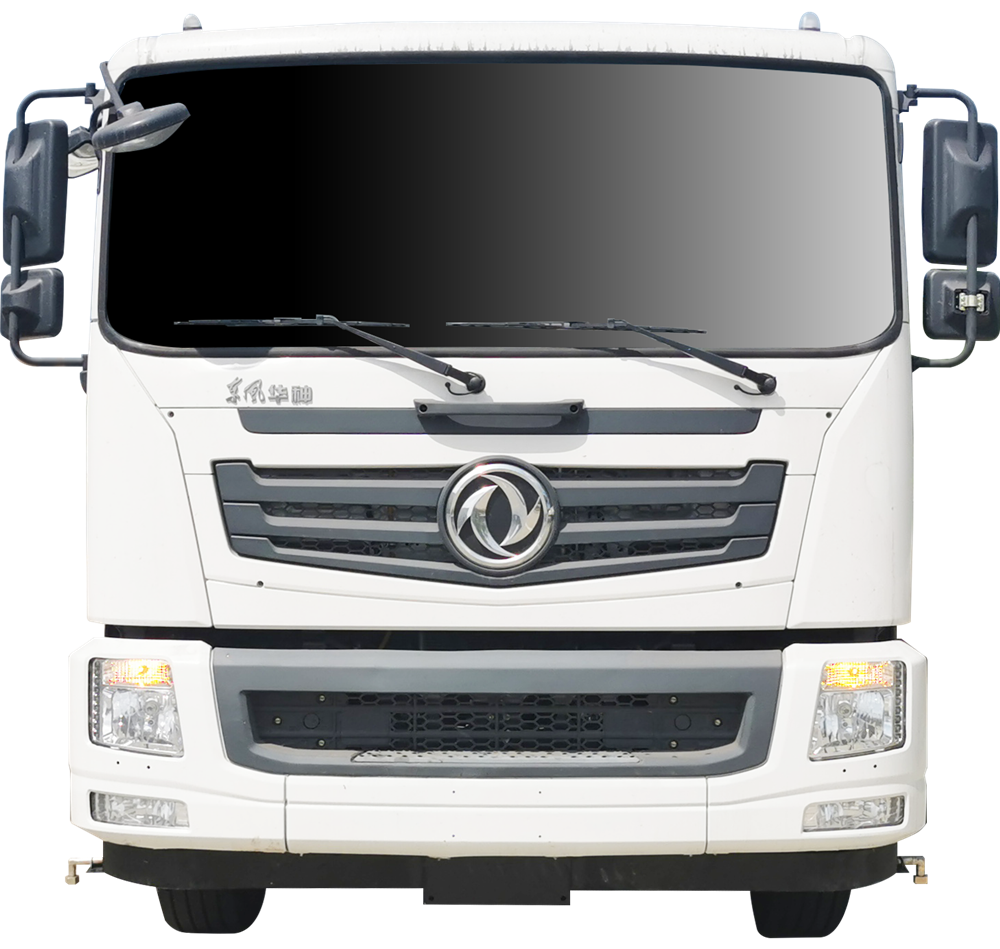

Ruiqing S92 pure electric cleaning vehicle

< >

Field of application

ART5180TXSS92BEV The pure electric washing and sweeping vehicle is mainly used for the general sweeping operation of the main road surface. It integrates the functions of cleaning and high-pressure washing. It can quickly clean the fallen leaves, stones, sand dust, white garbage and dump the garbage.

Product highlights

◆ box: 304 stainless steel material, corrugated box appearance, light structure, not easy to deform and crack

◆ high pressure pump model: pratissoli, Italy

◆ cleaning system: the sweeping plate and spray rod have the functions of automatic avoidance and automatic recovery in case of obstacles. The central sweeping plate (two sweeping plates can be controlled separately) + the central V-shaped spraying frame + the central double suction port structure. The operation modes include: "full washing and sweeping", "left washing and sweeping", "right washing and sweeping", "full sweeping", "left sweeping" and "right sweeping"

◆ hydraulic system: open hydraulic system, electro-hydraulic centralized control, nominal displacement of hydraulic pump: 14ml / R

◆ cleaning system: driven by chassis gearbox and power take-off, the model of water pump is 80qzf-60 / 90

◆ self cleaning of dustbin: the dustbin is equipped with a self-cleaning spray rod, which is threaded in the dustbin, the spray angle can be adjusted, and the nozzle is easy to remove and replace.


technical parameter

Entry name

Company

Parameter

Chassis model / brand

/

SH1187ZPEVWZ1/Leap forward

Total mass

kg

18000

Curb weight

kg

12450

Wheelbase

mm

5200

Axle load

kg

7000/11000

Battery brand

/

Ningde times (lithium iron phosphate)

Battery capacity

kWh

314.36度(580V/542Ah)

Range

km

312(Working condition method)

Maximum speed

km/h

90

Maximum climbing gradient

%

30

Minimum turning radius

m

8.5/9.5

High pressure pump flow

L/min

142

High pressure pump pressure

Mpa

10

Rated speed of high pressure pump

rpm

1450

Bin volume

m3

7

Clean water tank volume

m3

7

Dimensions

mm

8630*2550*3200
